**Specification
1) Frequency range:
-Up link GSM 890-915
-Downlink GSM 825-960
2) Gain(dB) GSM Up link: 55
3) GSM downlink: 60
4) Gain adjustable range: GSM950/ 50Db~55Db
5) Output power(dBm): ≥27 / 30
6) Pass band ripple GSM: 4dB
7) Guard band rejection: GSM(BW-60dB)≤42 MHz (BW-70dB)≤45 MHz
8) I/O impedance: 50Ω
9) I/O return loss: ≤-10dB
10) Noise coefficient: ≤5dB
11) Intermodulation attenuation (Po=13dBm): ≥40dBc
12) Transmission delay: ≤0.5us
13) Ambient temperature: -10℃～60℃
14) Power supply: AC220V / DC 12V 45～55Hz
**Characteristic
1) Fully integrated 980 MHz antenna system
2) Powerful amplifier enables up to + 85 dB of signal gain including cable loss
3) Intelligent signal processing and real time adaptive operation
4) Automatically adjusts power levels as needed to ensure a consistent coverage footprint
5) Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
6) Auto-track LED diagnostics displays aid install and operation
7) Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices

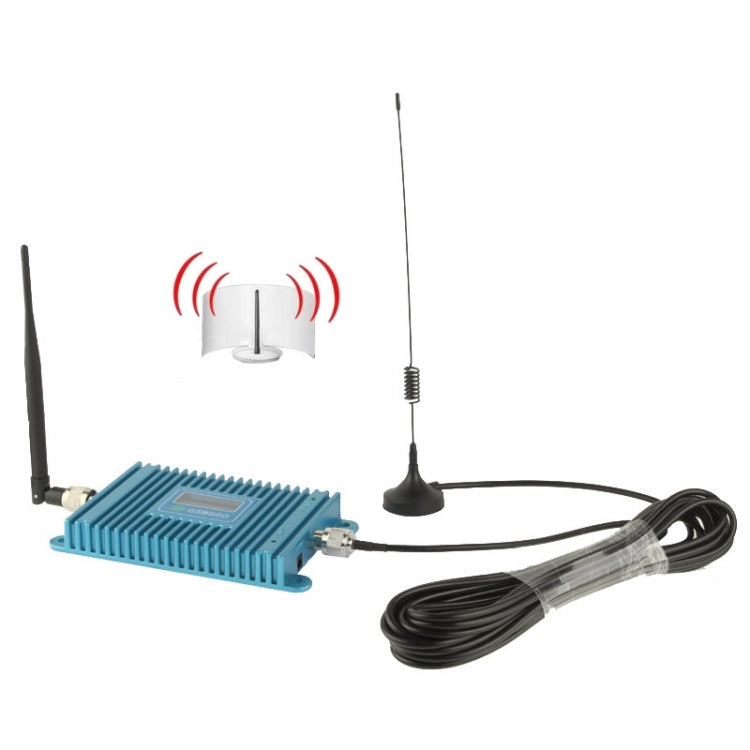

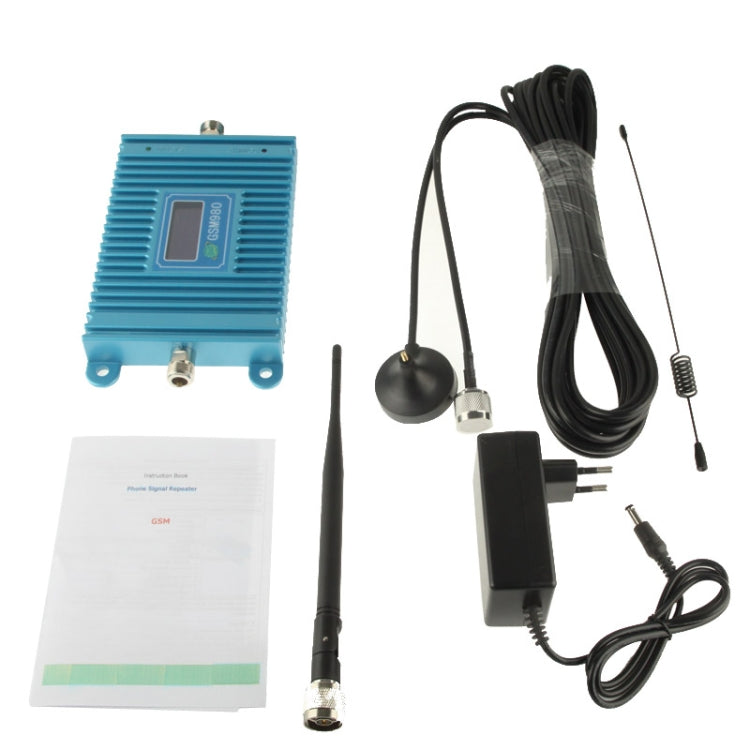

**The package contains:
1) 55dB GSM cellular phone signal amplifier
2) 9dB outdoor antenna
3) 3dB indoor antenna
4) 10m cable
5) Mounting accessories
6) AC power supply

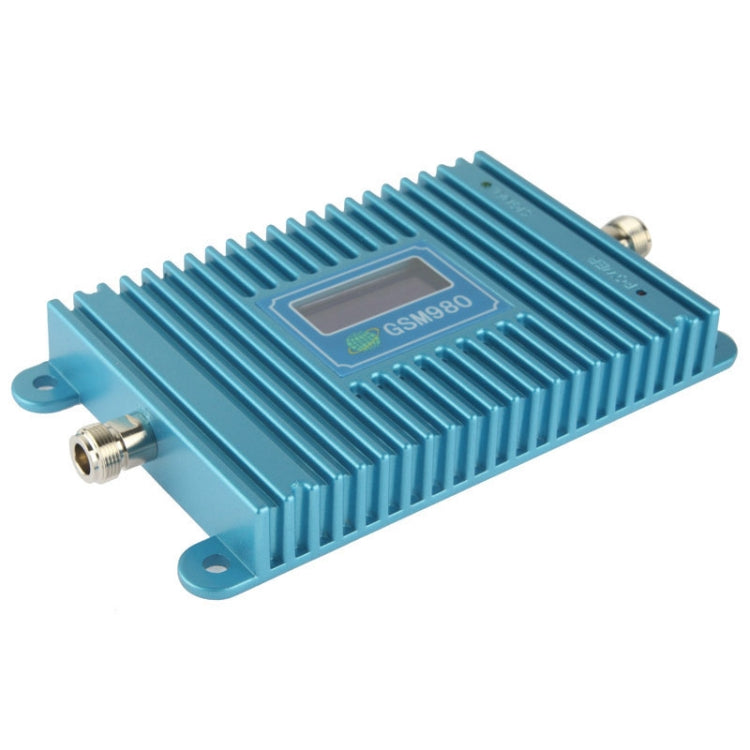

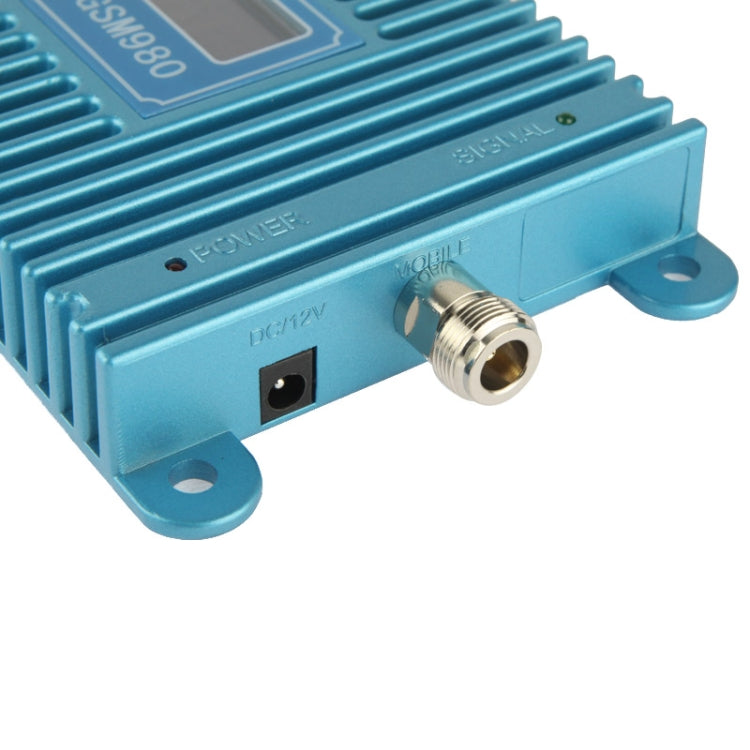

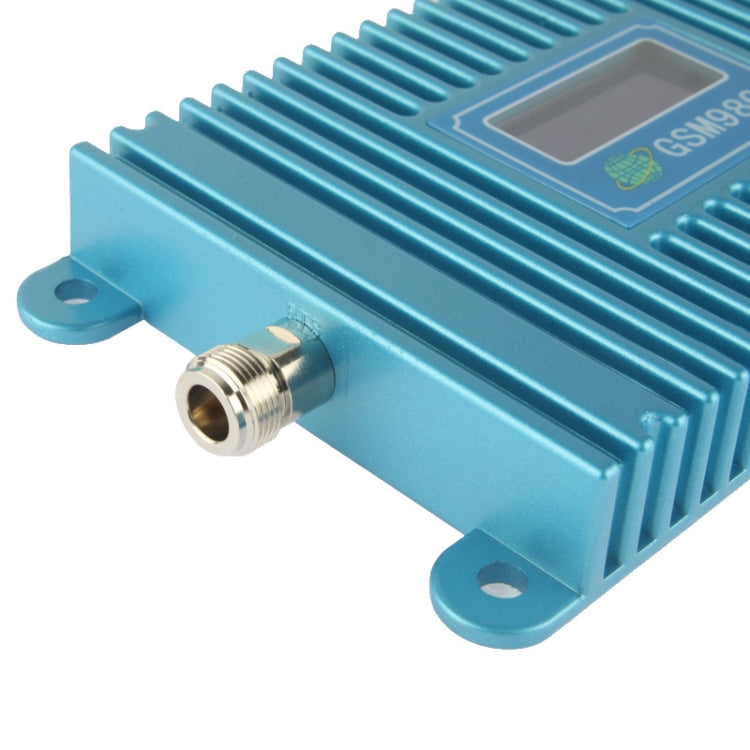

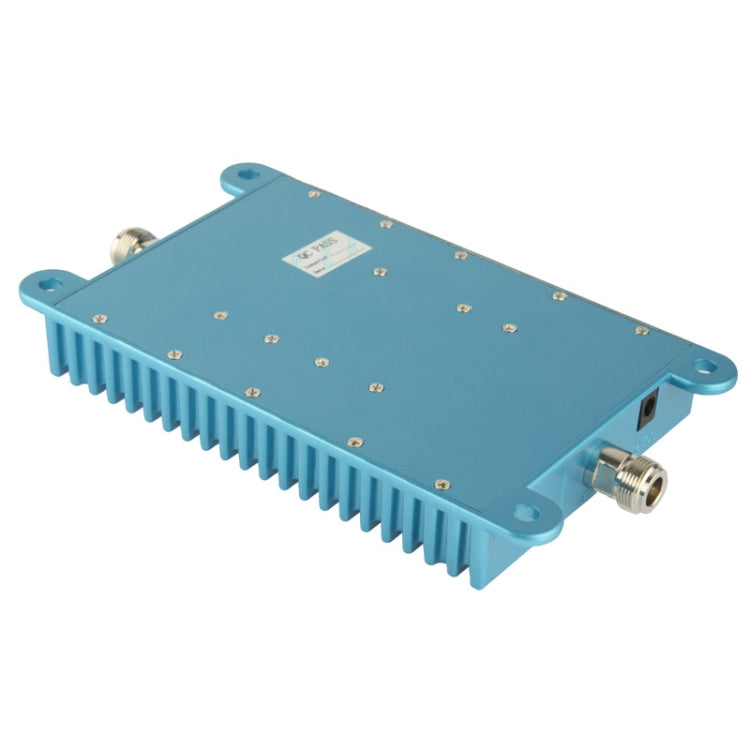

GSM 980 Cellular Phone Signal Repeater Booster + Antenna (JAX-GSM980)
Reliable shipping
Flexible returns
1) Frequency range:
-Up link GSM 890-915
-Downlink GSM 825-960
2) Gain(dB) GSM Up link: 55
3) GSM downlink: 60
4) Gain adjustable range: GSM950/ 50Db~55Db
5) Output power(dBm): ≥27 / 30
6) Pass band ripple GSM: 4dB
7) Guard band rejection: GSM(BW-60dB)≤42 MHz (BW-70dB)≤45 MHz
8) I/O impedance: 50Ω
9) I/O return loss: ≤-10dB
10) Noise coefficient: ≤5dB
11) Intermodulation attenuation (Po=13dBm): ≥40dBc
12) Transmission delay: ≤0.5us
13) Ambient temperature: -10℃～60℃
14) Power supply: AC220V / DC 12V 45～55Hz
**Characteristic
1) Fully integrated 980 MHz antenna system
2) Powerful amplifier enables up to + 85 dB of signal gain including cable loss
3) Intelligent signal processing and real time adaptive operation
4) Automatically adjusts power levels as needed to ensure a consistent coverage footprint
5) Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
6) Auto-track LED diagnostics displays aid install and operation
7) Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices
**The package contains:
1) 55dB GSM cellular phone signal amplifier
2) 9dB outdoor antenna
3) 3dB indoor antenna
4) 10m cable
5) Mounting accessories
6) AC power supply
