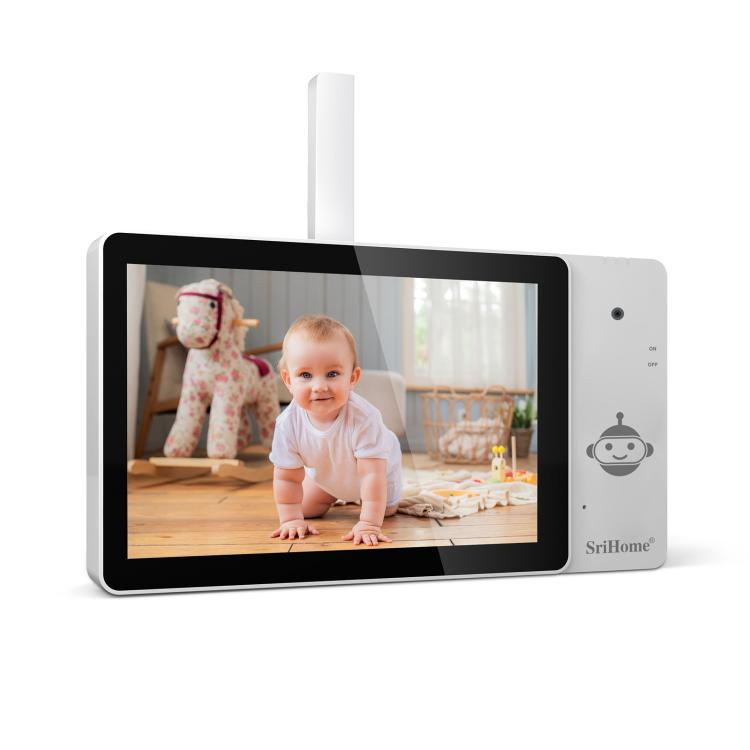

DH050 Display:
1. 5-inch HD touchscreen, supports 2.4G WiFi 6 wireless networking
2. Compatible with all SriHome products
3. Supports camera event push notifications, two-way voice communication between the main unit and camera, dual-mode WiFi, remote viewing of the camera on the main unit via APP, enabling two-way audio and video calls, alarm clock function, and electronic photo album function
4. Supports up to 4 simultaneous screens
5. Main processor: PX30 Cortex-A35 quad-core, up to 1.5GHz
6. Operating system: Android 9.0
7. Display size: 5 inches, resolution: 720 x RGB x 1280, touch: supported
8. Camera: Built-in 720P HD camera
9. Video: H.264 encoding format, resolution: 4-channel 1920x1080
10. Audio: Protocol G711, built-in 1-watt speaker, built-in microphone, supports two-way voice communication
11. WiFi:
a. WiFi type: WiFi 6
b. Standard: IEEE 802.11b/g/n/ax 1T1R
c. Security Protocols: WPA, WPA2, WPA3 Personal
d. STA/AP: Simultaneously supports: can connect to a WiFi router and simultaneously provide a WiFi hotspot for the terminal camera.
e. Operating Frequency: 2.412~2.484GHz
12. Local Storage:
a. TF Card Storage: Supports 128GB
b. Recording Method: The host does not support SD card recording.
c. SD Card Storage: Stores alarm images, screenshots, downloads video files from the camera to the host SD card, and changes the desktop background image.
13. Notifications:
a. Terminal Alarm Events: Real-time video push and supports real-time intercom.
b. Alarm Tones: Visitor call alert tone broadcast.
14. Power Interface: Type C
15. Operating Temperature: -10 ~ 50 degrees Celsius
16. Operating Power Consumption: 4.5W~7.5W
17. Operating Humidity: 10%－90% RH
18. Dimensions: 69x37x132 (mm)
19. Net weight: 326 grams

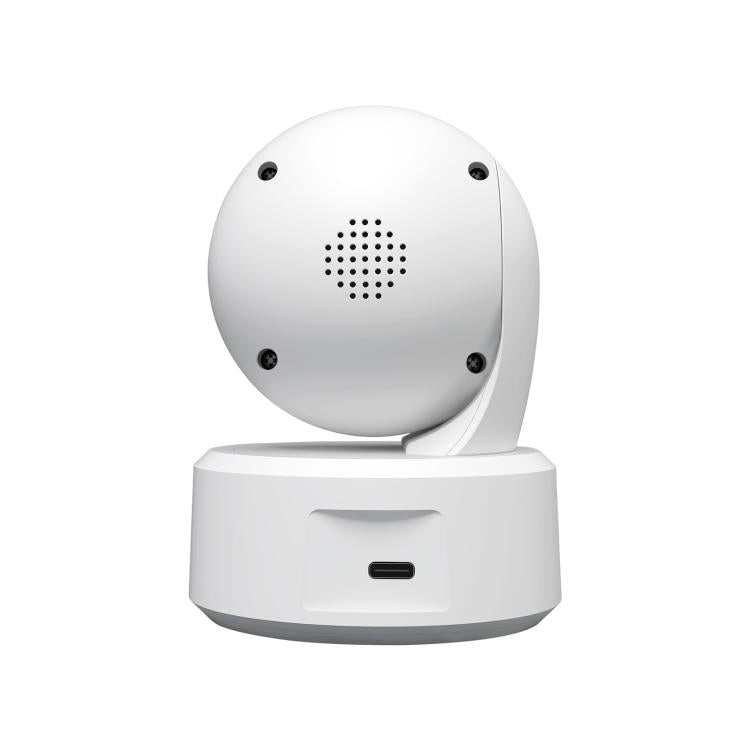

SH064 Camera:
Features:
1. Pixels: 8 megapixels (3840x2160), H.265 compression format, balancing high definition and efficiency
2. Audio: Built-in microphone and speaker, supporting monitoring and intercom
3. Sensor: Digital wide dynamic range, 3x electronic zoom; 3.6mm lens, clear images
4. Night Vision: Starlight-grade lens, intelligent dual-light, supporting full-color night vision
5. Fill Light: Infrared and white light, with three lighting modes
6. Storage: Supports up to 256GB TF cards, supports mobile phone recording and playback
7. Dual-band Wi-Fi: Supports 2.4G/5G Wi-Fi, with long-range interference resistance and low latency
8. AI Intelligence: Supports crying sound detection, human tracking, and human detection
Parameters:
1. System:
a. Main Processor: Multi-core high-speed processor
b. Sensor: 1/2.7-inch, 8-megapixel high-definition color CMOS sensor
c. Compression Format: H.265
2. Lens:
a. Lens Parameters: Focal Length: 3.6mm, 8-megapixel lens
b. Viewing Angle: D: 130° H: 100° V: 78°
3. Video:
a. Resolution: 2160p (3840x2160), 1440p (1920x1440), 720p (1280x720)
b. Frame Rate: 15 fps
c. Auto Exposure: Automatic exposure and white balance
d. Night Vision: Alarm Mode: Defaults to black and white night vision. When a human figure is detected, the white light automatically turns on, switching to full-color night vision. White Light Mode: The white light turns on with adjustable brightness, providing full-color night vision (no fill light required under starlight). Infrared Mode: White light turns off, switching to standard night vision.
e. Wide Dynamic Range: Digital Wide Dynamic Range
f. IR-Cut: Built-in IR-Cut, ensuring accurate color cast indoors and outdoors, and excellent night vision.
g. Electronic Magnification: 3x electronic magnification.
3. Audio:
a. Audio: Built-in microphone and speaker, supporting two-way audio.
b. Protocol: PCM.
4. Pan/Tilt:
a. Tracking: Supports human tracking.
b. Rotation: Horizontal: 355 degrees, Vertical: 180 degrees.
5. Alarms:
a. Alarms: Motion detection, human presence (requires motion detection to be enabled), and crying detection.
b. Alarm Notification: Mobile push notification.
c. Advanced Zone Detection: Supports customizable motion detection zones for improved alarm accuracy.
6. Privacy Protection:
a. Advanced Permission Management: The first user added is the administrator by default; other users must grant permission to access.
b. Advanced Privacy Zones: Supports four selectable zones for enhanced privacy protection.
7. Network:
a. Remote Access: P2P
b. Wireless: 2.4G (11bng) mixed & 5G 11a/n/ac mixed
c. Network Configuration: QR code configuration and AP hotspot configuration
d. AP hotspot: Connect via an AP hotspot, monitoring is possible without an internet connection
8. Software: iOS / Android (SriHome app)
9. Recording:
a. Modes: Manual, alarm, and scheduled recording
b. Resolution: 2160P (3840x2160), VGA (480x360)
c. Storage: Supports up to 256GB TF card storage (approximately 20 days of HD recording, 70 days of SD recording), supports local phone storage
d. Playback: Supports remote playback
10. Power Adapter: Input AC: 100-240V, Output TYPE-C: 5V/1.5A
11. Operating Temperature: -10-50°C
12. Operating humidity: 10%-90% RH
13. Weight: 200g

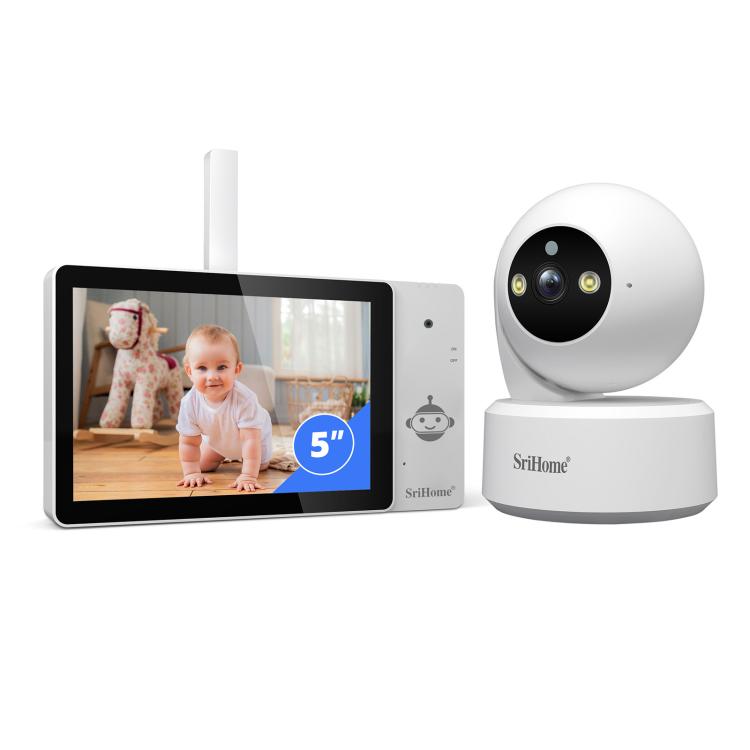

SriHome DH050-SH064 5 inch Baby Monitor Care Camera Kit
Reliable shipping
Flexible returns
1. 5-inch HD touchscreen, supports 2.4G WiFi 6 wireless networking
2. Compatible with all SriHome products
3. Supports camera event push notifications, two-way voice communication between the main unit and camera, dual-mode WiFi, remote viewing of the camera on the main unit via APP, enabling two-way audio and video calls, alarm clock function, and electronic photo album function
4. Supports up to 4 simultaneous screens
5. Main processor: PX30 Cortex-A35 quad-core, up to 1.5GHz
6. Operating system: Android 9.0
7. Display size: 5 inches, resolution: 720 x RGB x 1280, touch: supported
8. Camera: Built-in 720P HD camera
9. Video: H.264 encoding format, resolution: 4-channel 1920x1080
10. Audio: Protocol G711, built-in 1-watt speaker, built-in microphone, supports two-way voice communication
11. WiFi:
a. WiFi type: WiFi 6
b. Standard: IEEE 802.11b/g/n/ax 1T1R
c. Security Protocols: WPA, WPA2, WPA3 Personal
d. STA/AP: Simultaneously supports: can connect to a WiFi router and simultaneously provide a WiFi hotspot for the terminal camera.
e. Operating Frequency: 2.412~2.484GHz
12. Local Storage:
a. TF Card Storage: Supports 128GB
b. Recording Method: The host does not support SD card recording.
c. SD Card Storage: Stores alarm images, screenshots, downloads video files from the camera to the host SD card, and changes the desktop background image.
13. Notifications:
a. Terminal Alarm Events: Real-time video push and supports real-time intercom.
b. Alarm Tones: Visitor call alert tone broadcast.
14. Power Interface: Type C
15. Operating Temperature: -10 ~ 50 degrees Celsius
16. Operating Power Consumption: 4.5W~7.5W
17. Operating Humidity: 10%－90% RH
18. Dimensions: 69x37x132 (mm)
19. Net weight: 326 grams
SH064 Camera:
Features:
1. Pixels: 8 megapixels (3840x2160), H.265 compression format, balancing high definition and efficiency
2. Audio: Built-in microphone and speaker, supporting monitoring and intercom
3. Sensor: Digital wide dynamic range, 3x electronic zoom; 3.6mm lens, clear images
4. Night Vision: Starlight-grade lens, intelligent dual-light, supporting full-color night vision
5. Fill Light: Infrared and white light, with three lighting modes
6. Storage: Supports up to 256GB TF cards, supports mobile phone recording and playback
7. Dual-band Wi-Fi: Supports 2.4G/5G Wi-Fi, with long-range interference resistance and low latency
8. AI Intelligence: Supports crying sound detection, human tracking, and human detection
Parameters:
1. System:
a. Main Processor: Multi-core high-speed processor
b. Sensor: 1/2.7-inch, 8-megapixel high-definition color CMOS sensor
c. Compression Format: H.265
2. Lens:
a. Lens Parameters: Focal Length: 3.6mm, 8-megapixel lens
b. Viewing Angle: D: 130° H: 100° V: 78°
3. Video:
a. Resolution: 2160p (3840x2160), 1440p (1920x1440), 720p (1280x720)
b. Frame Rate: 15 fps
c. Auto Exposure: Automatic exposure and white balance
d. Night Vision: Alarm Mode: Defaults to black and white night vision. When a human figure is detected, the white light automatically turns on, switching to full-color night vision. White Light Mode: The white light turns on with adjustable brightness, providing full-color night vision (no fill light required under starlight). Infrared Mode: White light turns off, switching to standard night vision.
e. Wide Dynamic Range: Digital Wide Dynamic Range
f. IR-Cut: Built-in IR-Cut, ensuring accurate color cast indoors and outdoors, and excellent night vision.
g. Electronic Magnification: 3x electronic magnification.
3. Audio:
a. Audio: Built-in microphone and speaker, supporting two-way audio.
b. Protocol: PCM.
4. Pan/Tilt:
a. Tracking: Supports human tracking.
b. Rotation: Horizontal: 355 degrees, Vertical: 180 degrees.
5. Alarms:
a. Alarms: Motion detection, human presence (requires motion detection to be enabled), and crying detection.
b. Alarm Notification: Mobile push notification.
c. Advanced Zone Detection: Supports customizable motion detection zones for improved alarm accuracy.
6. Privacy Protection:
a. Advanced Permission Management: The first user added is the administrator by default; other users must grant permission to access.
b. Advanced Privacy Zones: Supports four selectable zones for enhanced privacy protection.
7. Network:
a. Remote Access: P2P
b. Wireless: 2.4G (11bng) mixed & 5G 11a/n/ac mixed
c. Network Configuration: QR code configuration and AP hotspot configuration
d. AP hotspot: Connect via an AP hotspot, monitoring is possible without an internet connection
8. Software: iOS / Android (SriHome app)
9. Recording:
a. Modes: Manual, alarm, and scheduled recording
b. Resolution: 2160P (3840x2160), VGA (480x360)
c. Storage: Supports up to 256GB TF card storage (approximately 20 days of HD recording, 70 days of SD recording), supports local phone storage
d. Playback: Supports remote playback
10. Power Adapter: Input AC: 100-240V, Output TYPE-C: 5V/1.5A
11. Operating Temperature: -10-50°C
12. Operating humidity: 10%-90% RH
13. Weight: 200g
Specification:
