Feature:

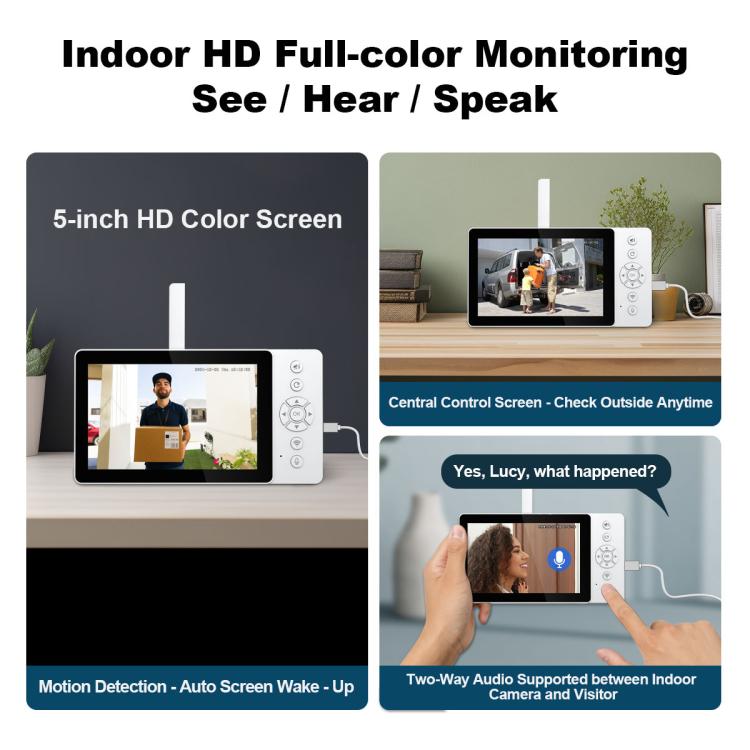

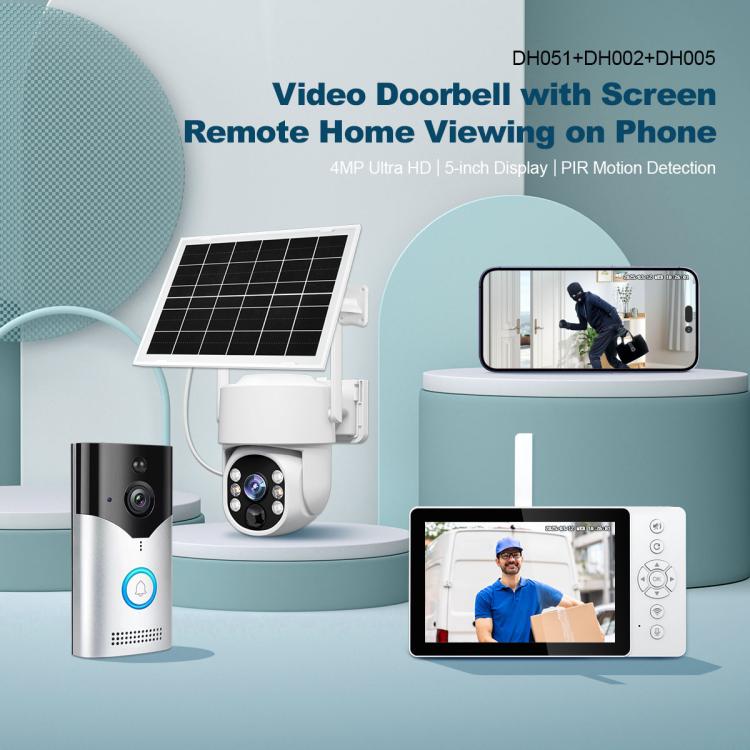

1. 5-inch Mini HD screen with 2.4G WiFi 6 wireless networking support

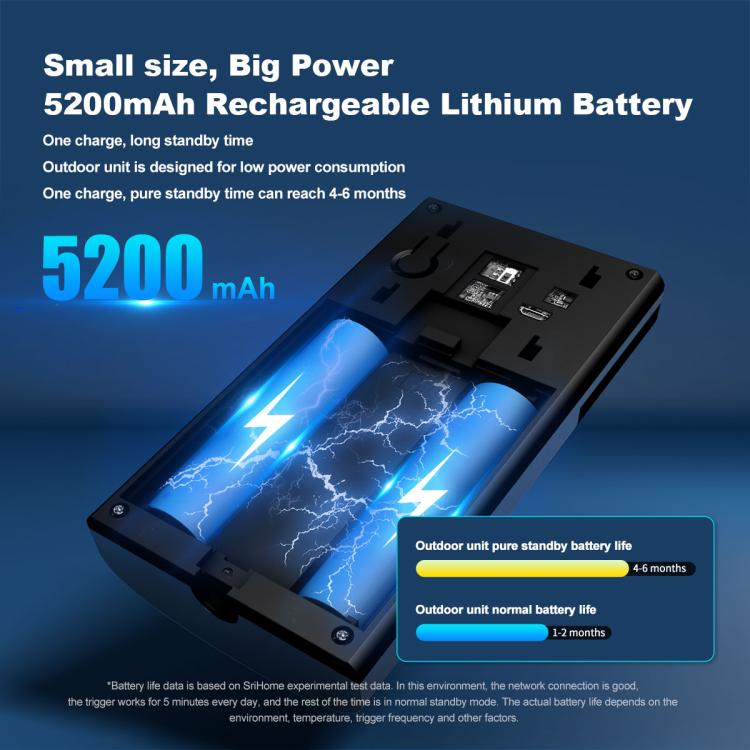

2. Built-in 5200mAh high-capacity lithium-ion battery for convenient mobility
3. Paired with the SriHome wireless smart video doorbell for video intercom
4. One-touch doorbell wakeup, door view, and real-time intercom
5. Voice-activated call management for hands-free operation; desktop stand included
6. Supports landscape and portrait display, compatible with multiple SriHome video doorbell models

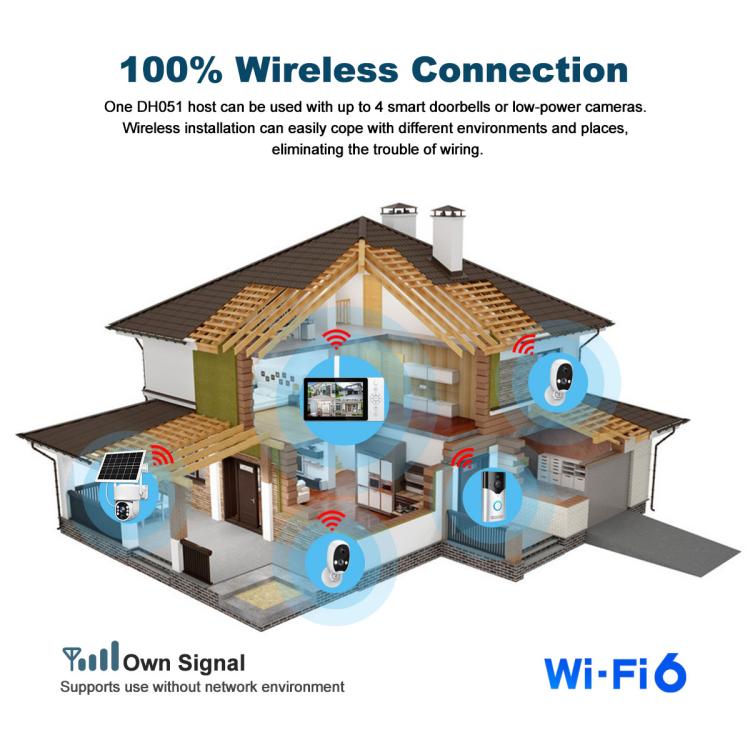

7. Supports independent use with the doorbell on a LAN, ensuring peace of mind during network disconnections
8. Supports app-based remote viewing and configuration, and supports 128GB SD card storage

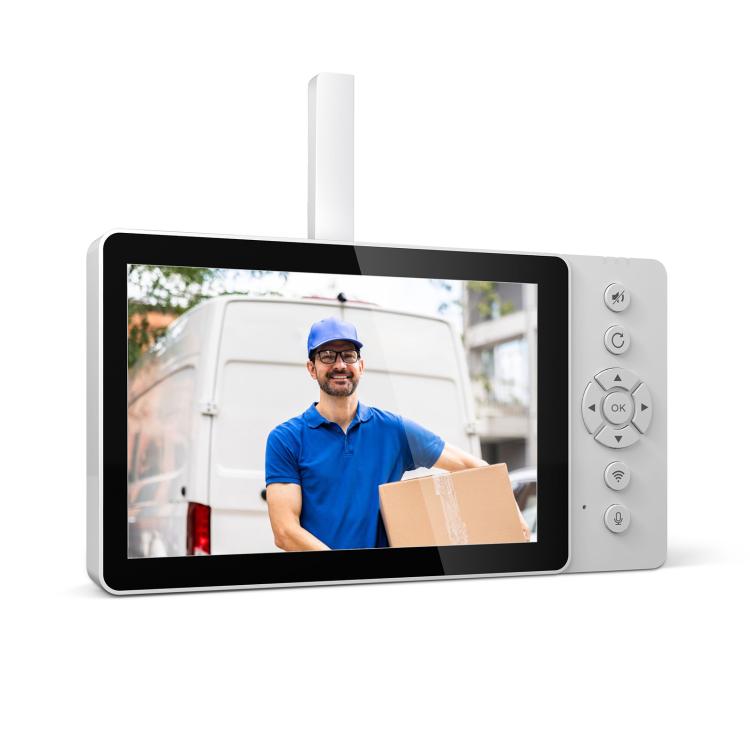

DH051 Parameters:
1. Main Processor: 1GHz, 1.5TB High-Performance SoC
2. Operating System: Linux

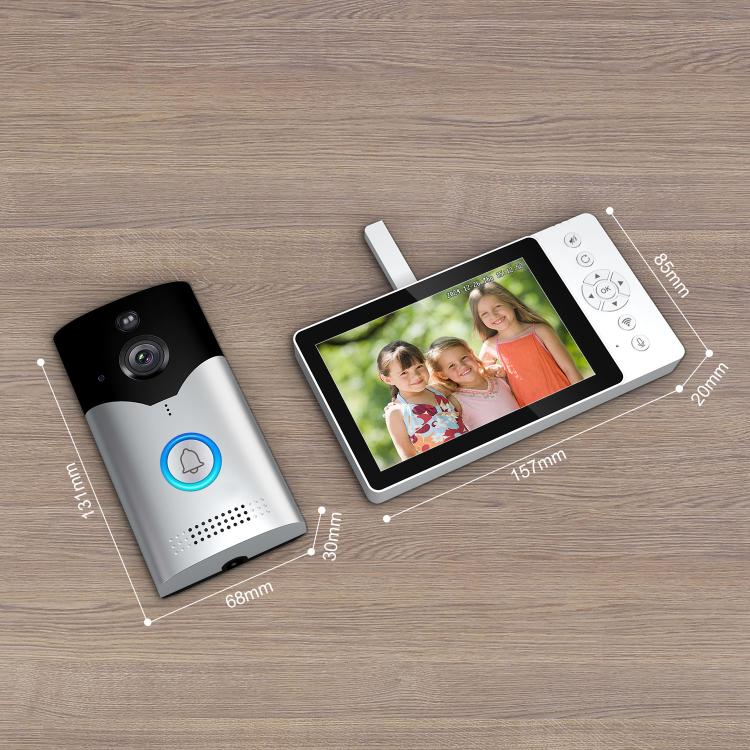

3. Display: 5-inch
4. Resolution: 720 x RGB x 1280
5. Screen Off: Automatically turns off the screen upon exiting the configuration interface
6. Video: H.264 encoding format, 4-channel 1920x1080 resolution

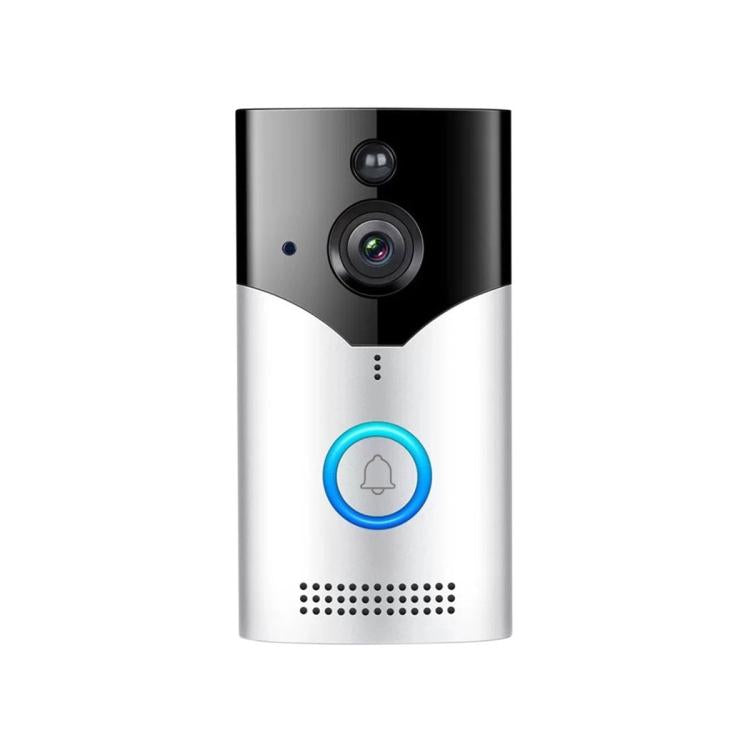

DH002 Wireless Doorbell Parameters:
1. Pixels & Resolution: 4M 1920x1440
2. Battery: 2 x 18650 batteries
3. Charging Supported/5V 1.5A Charger
4. Encoding: H.264
5. PIR: Configurable timer, disabled by default
6. Standby Current/Time: Less than 1mA/Over 3 months
7. Pairing Method: Scan the channel QR code on the host or the channel management QR code in the app
8. Audio: Two-way audio
Audio Parameters:
1. Protocol: G711
2. Speaker: Built-in 1-watt speaker
3. Microphone: Built-in microphone
4. Function: Supports two-way voice communication
WiFi Parameters:
1. WiFi Type: WiFi 6
2. Standard: IEEE 802.11b/g/n/ax 1T1R
3. Security Protocol: WPA, WPA2, WPA3
4. Operating Frequency: 2.412-2.484GHz
Local Storage:
1. TF Card Storage: Supports 128GB
2. Recording Standard: MP4
3. Recording Mode: Event Recording (e.g., a visitor ringing the doorbell, activating the PIR wakes up the camera)
4. Recording Resolution: VGA
5. Video Viewing: App Playback
Notifications:
1. Doorbell Visitor: Real-time video push notifications and real-time intercom support
2. App Notification: Visitor and PIR event notifications can be sent to the user via the app
3. Alert Sound: Doorbell ding-dong tone
Other Specifications:
1. Power Interface: Type C
2. Operating Temperature: -10 to 50 degree Celsius
3. Power Consumption: 4.5W to 7.5W
4. Operating Humidity: 10% to 90% RH

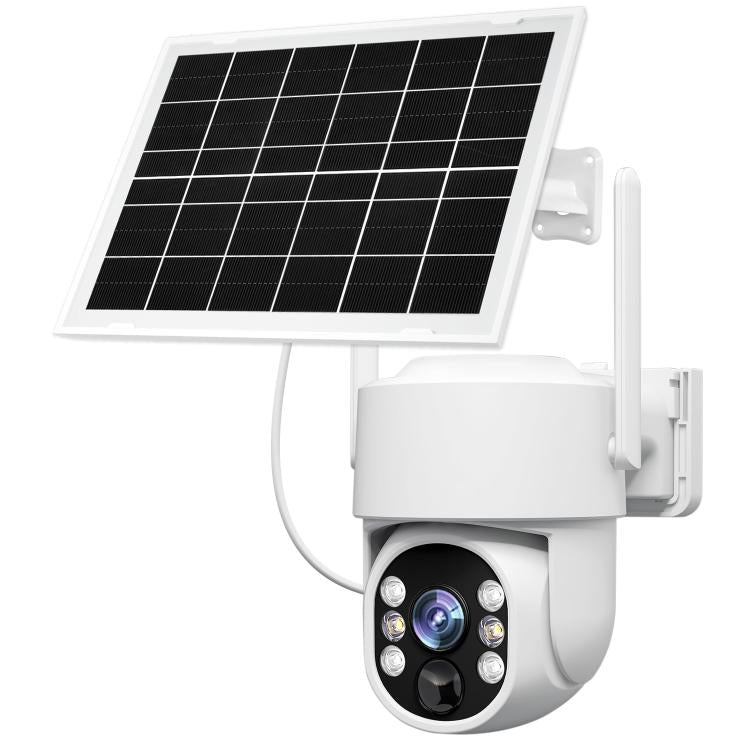

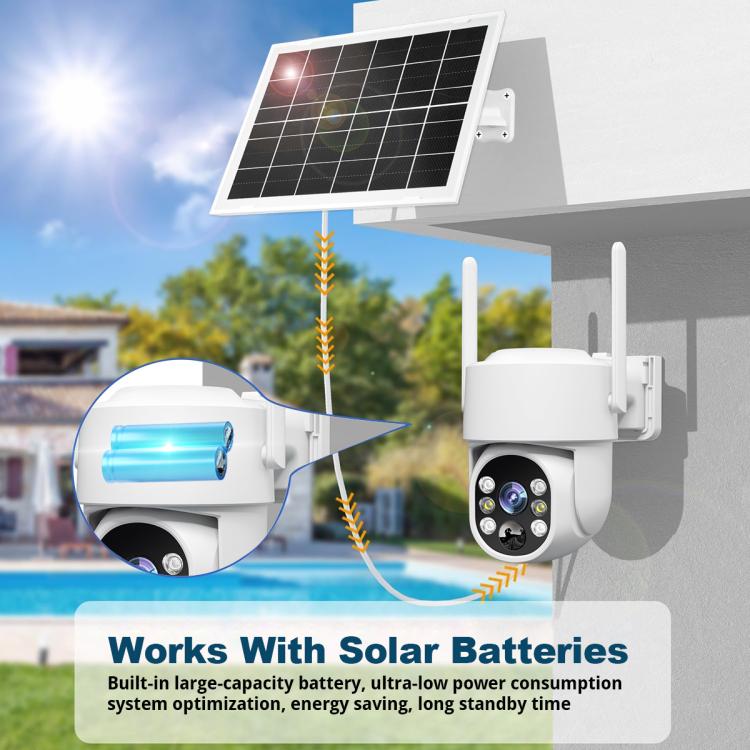

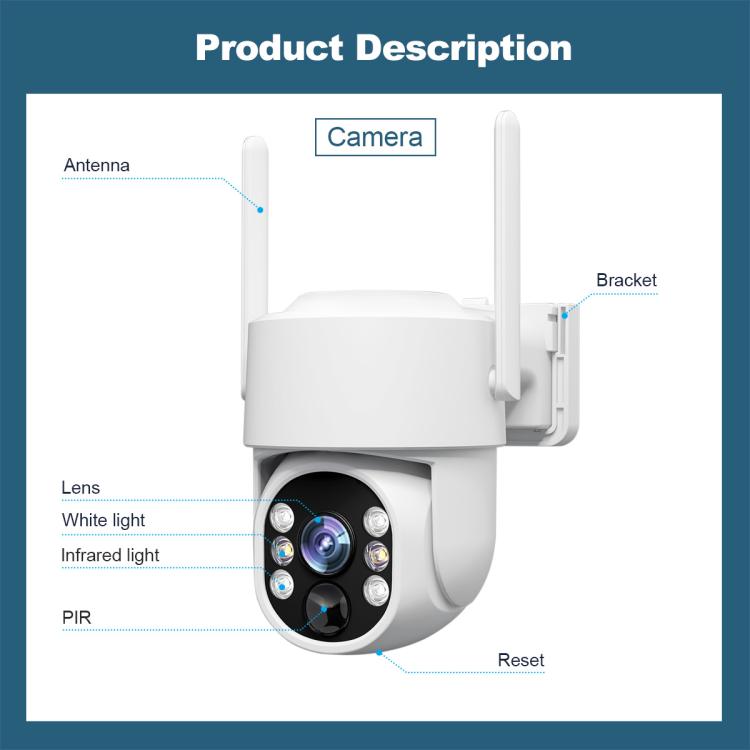

DH005 Camera Parameters:
1. Main Processor: 32-bit RISC Master
2. Operating system: Linux
3. Sensor: CMOS sensor 1/3 inch
4. Pixel: 2560x1440
5. Minimum illumination: 0.1LUX/F1.2
6. Lens: Focal length: 4mm, viewing angle 110 degree
7. Battery capacity: 2x2000mA Battery Pack (built-in)
8. Standby time: about 6 months
9. Standby current: Less than 1mA
10. Wake up time: About 5800 times (4000mA 18650 batteries)
11. Charging input: Type C, 5V
12. Video:
a. Resolution: 2560x1440 1440P, 640x360 360P
b. Compression format: H.264
c. Frame frequency: 20 fps
d. Exposure: Auto exposure white balance
e. WDR: Digital WDR
f. IR-Cut: No color cast during the day, good night vision
g. Zoom: App supports 3x digital zoom
13. Fill Light:
a. Infrared mode: Infrared night vision
b. White light mode: At night, the white light is turned on, the brightness is adjustable, full-color night vision

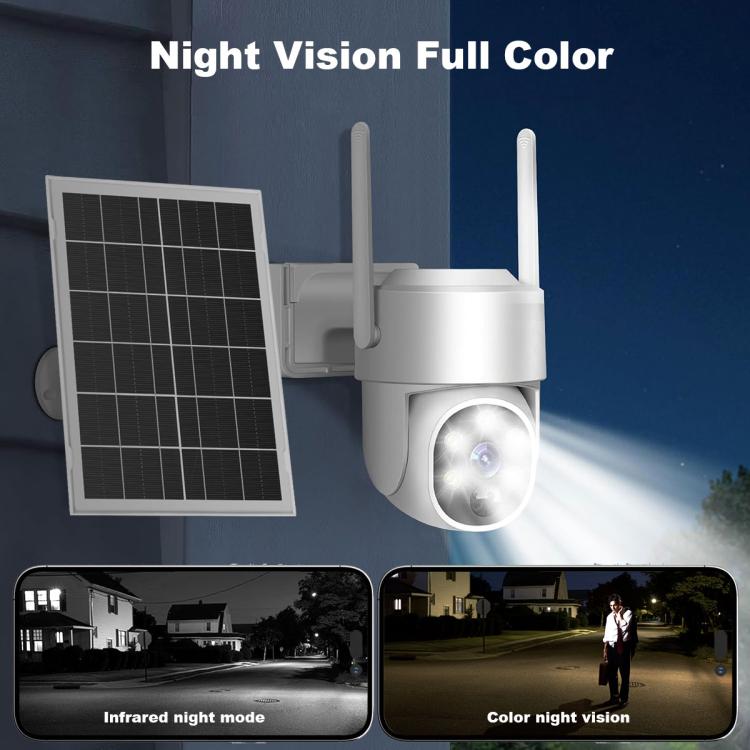

14. Night Vision:
a. Infrared night vision: Support
b. Color night vision: Turn on full-color night vision in dark environments
c. Alarm mode: When there is no one at night, the infrared light will be on when accessing through App; if someone triggers the PIR, the white light will be on
15. Audio: protocol G711U, built-in microphone and speaker,support monitoring and intercom
16. Storage:
a. TF card: Support up to 128G TF card storage
b. Record standard: 1440P
c. Record mode: PIR trigger
d. Playback: Support remote video playback
17. Network:
a. Wireless: 2.4G (11bng) mixed
b. Distribution mode: QR code distribution network
c. Online users: Number of simultaneous online viewers: 5 people are supported at the same time
18. Alarm:
a. Alarm: Human body induction alarm(PIR)
b. Alarm notification: Mobile phone push alarm
19. PTZ: Pan: 350 degree, tilt 90 degree
20. PIR: default start time is from 20:00~7:00(User can set)
21. APP: SriHome
22. Power interface: Type C DC5V
23. Working temperature: -10~50 degree Celsius
24. Waterproof degree: IP65
25. Working power consumption: 1.5~5W(daytime 1.5W)
26. Standby power consumption: less than 0.003w
27. Working humidity: 10%-90% RH
28. Size: 135mmx103mmx119mm
29. Weight: 360g

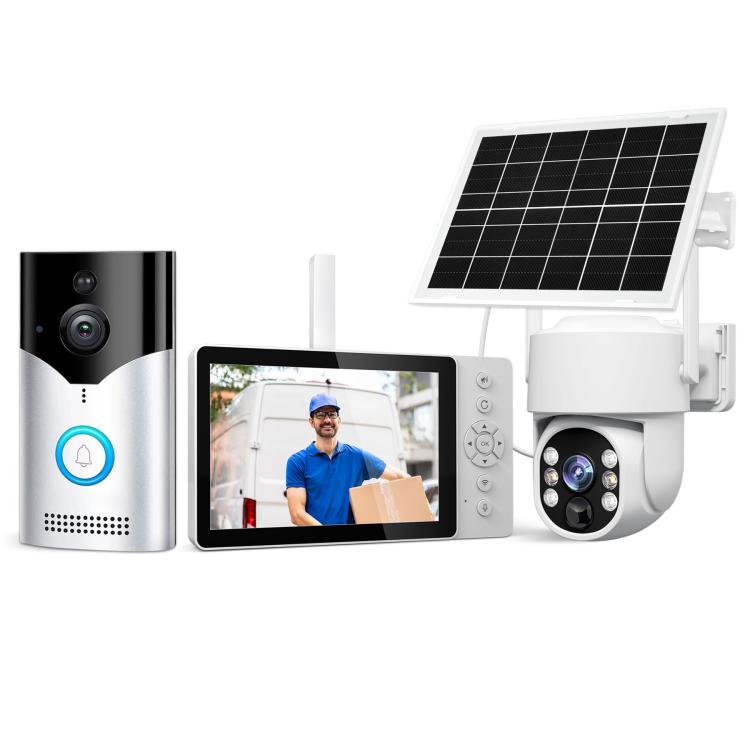

SriHome DH051+DH002+DH005 5 inch HD Screen PIR Visual Doorbell Camera Set
