Features:
1. Support TVI/AHD/DVR/NVR/CVI five-in-one function, multi-mode input
2. Support 2MN FHD analog video input
3. Support SriHome cloud platform, support remote monitoring&playback
4. Support coaxial audio monitoring, APP supports two-way voice intercom
5. Support infrared dual light, full-color night vision (alarm trigger)
6. Support 16TB hard disk, 4Ch synchronous playback and multiple playback
7. Support H.264/H.265 encoding front-end adaptive access

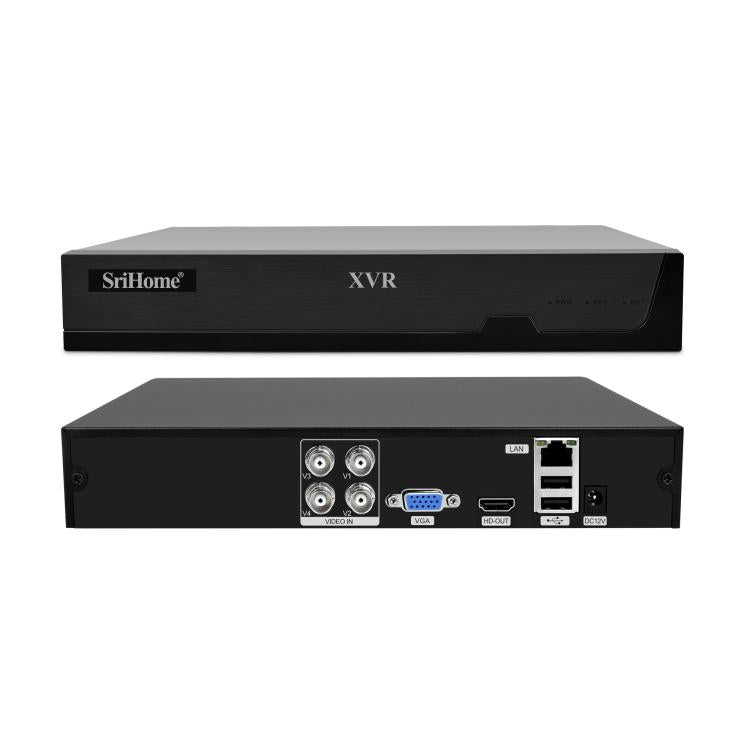

XVR
1. Model: NVS008 (4 channels 5MN)
2. Operating System: Embedded Linux
3. Main control chip: MC6630
4. Language: Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese
5. Video Input: 4CH
6. Resolution: Support 1280 x 720, 1920 x 1080, 1280 x 1440, 1280 x 1920
7. Audio output: 1ch HDMI, 1ch VGA
8. Decoding format: H265+/H264
9. Input Channels: Maximum support 5MN
10. Coaxial bidirectional: Support two-way Audio
11. Decoding format: Support G.711/ADPCM
12. HDMI interface: Support HDMI audio output
13. Coaxial Audio: 4ch
14. Hard disk interface: 1 SATA interface(donot support e-sata)
15. Hard drive capacity: Maximum support 16TB (not included)
16. Video recording: Manual recording, timed recording, motion detection
17. Playback Mode: Support 4CH simultaneous playback
18. Backup Mode: Support USB mobile hard disk, U disk
19. Network port: 10/100 Mbps Ethernet (RJ-45)
20. Network Protocol: TCP/IP, HDCP, DDNS, NTP, UDP, SMTP
21. Alarm mode: Motion detection alarm, human detection alarm
22. Alarm reminder: Humanoid mark, screen prompt, APP push

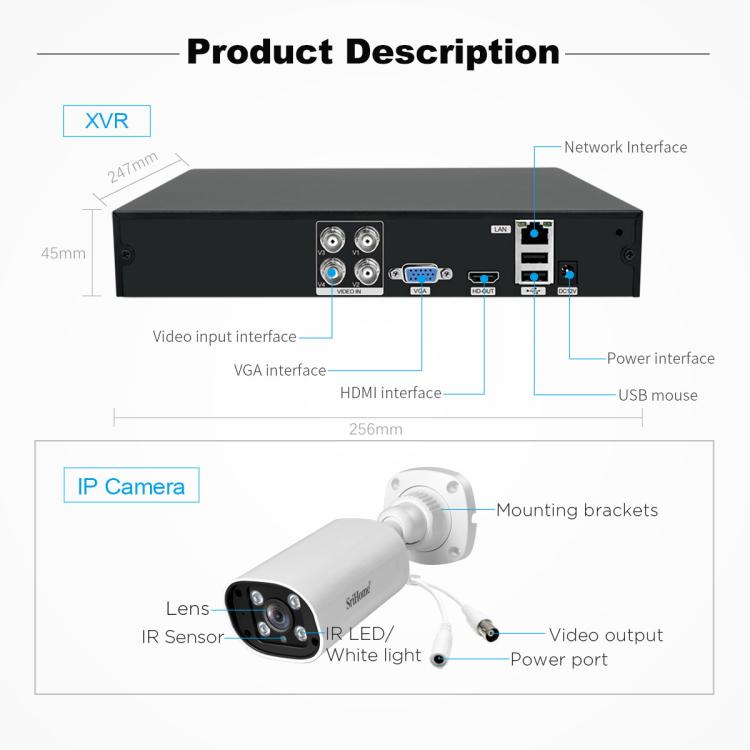

23. Network Interface: 1x RJ45 Network Interface
24. USB Interface: 2xUSB2.0
25. HD-MI Interface: 1
26. VGA Interface: 1
27. Power Interface: 1 x DC 12V 2A (5.5 x 2.1 x 10 )
28. Working temperature: -10 degree C ~ 50degree C
29. Working humidity: 10%~90% RH
30. APP: Support SriHome APP, iOS and Android remote access

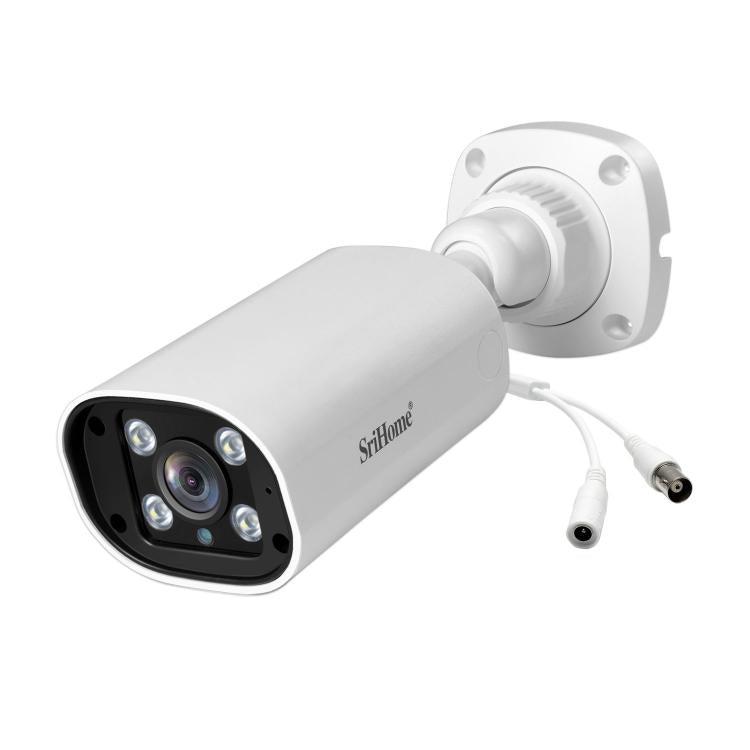

XVR Camera
1. Model: AHD006 (1080P)
2. Main processor: ARM11
3. Sensor: 1/4 inch, 2MP high definition color CMOS sensor
4. Signal output: Support AHD 1080p25 / cvi 1080p30
5. Parameter: Focal Length: 4mm, 2MP
6. Field of view: Horizontal: 350 degrees, Vertical: 90 degrees, Diagonal: 98 degrees
7. Output: Support AHD 1080P 25fps / cvi 1080P 30fps
8. Automatic exposure: Automatic exposure and white balance
9. Night Vision: High power infrared light, high definition night vision
10. Minimum illumination: 0.01 Lux / F2.0
11. IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision
12. Electronic Amplification: 3x Electronic magnification
13. Night Vision: Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on.
14. Audio: Support two-way audio, built-in microphone and speaker
15. Product Type: Metal plastic bullet camera, for indoor and outdoor use

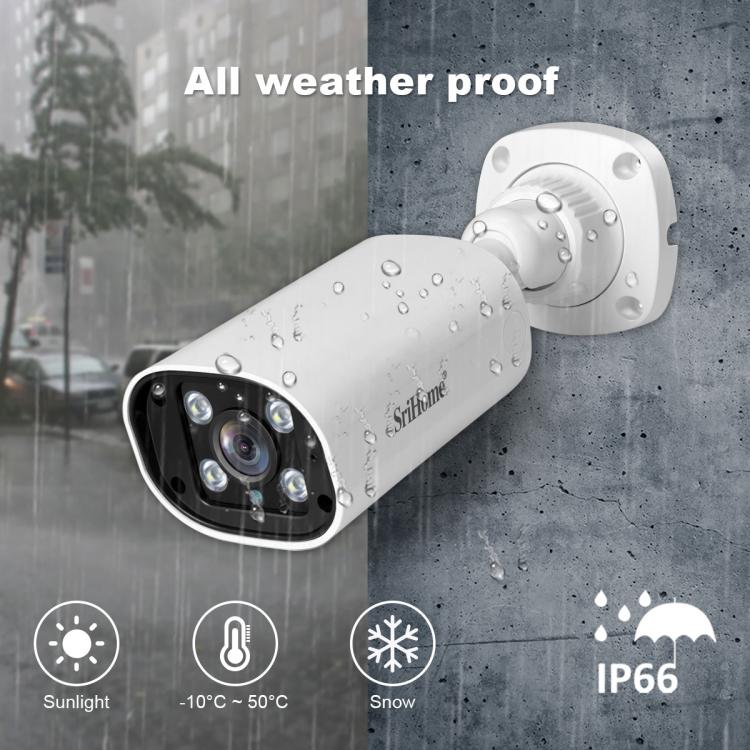

16. Waterproof grade: IP66
17. Power adapter: Input AC: 100~240V
18. Working temperature: -10 Degree C ~50 Degree C
19. Working humidity: 10%~90% RH
20. Product weight: Net weight: 0.36kg
21. Product size: 100x65x65 mmmm（length x width x height)

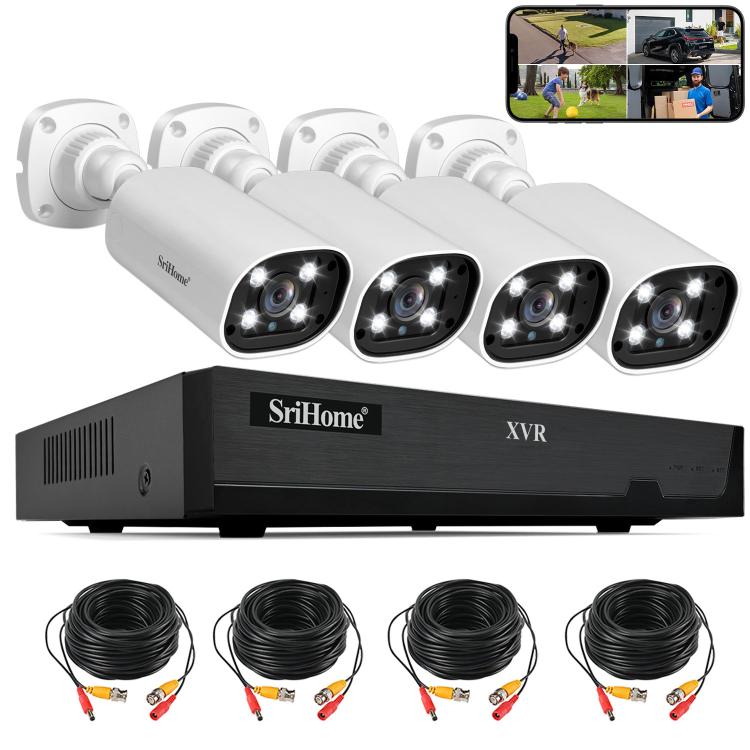

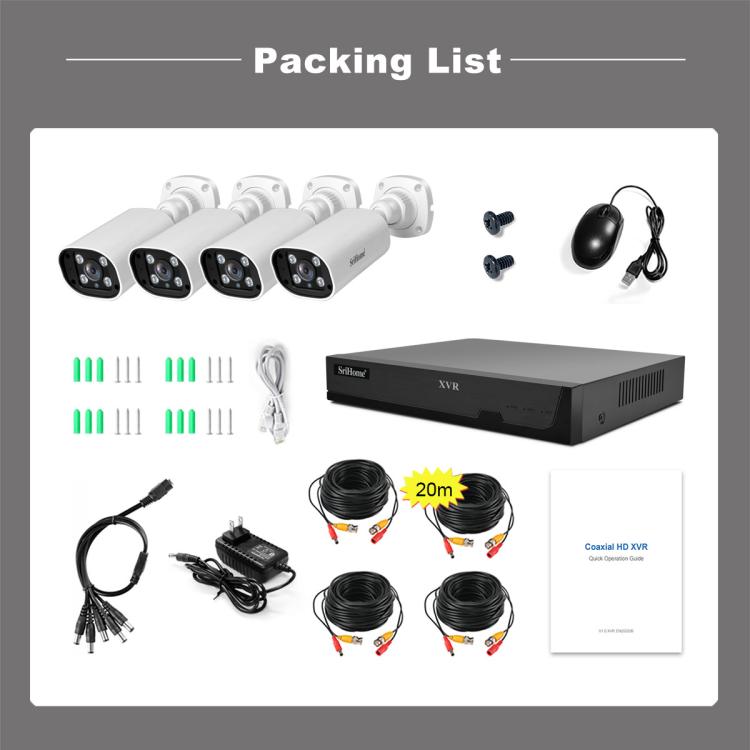

Package List
1. XVR: 1 x XVR NVS008
2. Camera: 4 x AHD006
3. Power Adapter: 1 x 12V 2A
4. Screw Pack: 5 Packs
5. Manual: 1
6. 1 to 5 power cord: 1
7. Net Cable: 1
8. Coaxial Cable: 4 x 20m

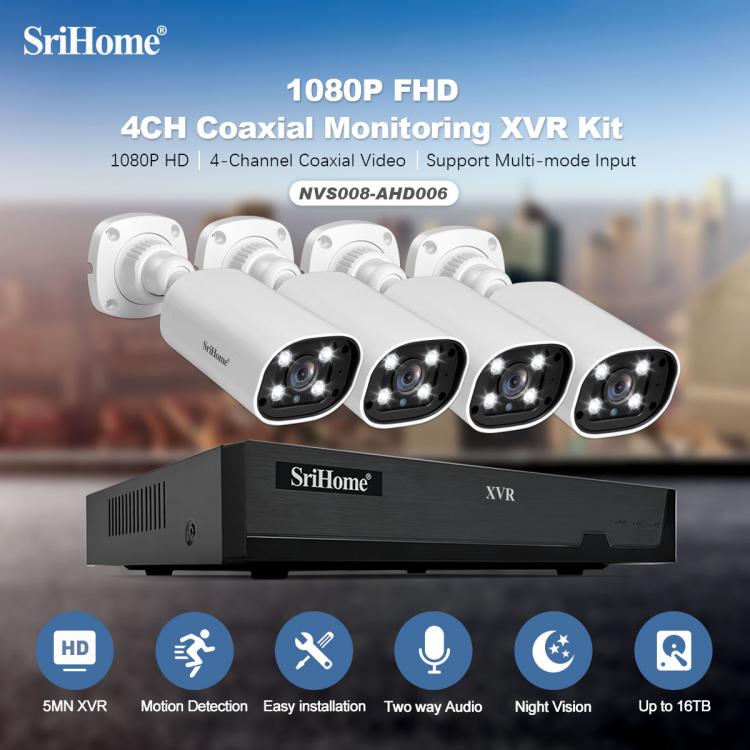

SriHome NVS008-AHD006 2MP HD 4-CH XVR NVR Camera Network Video Recorder Kit
