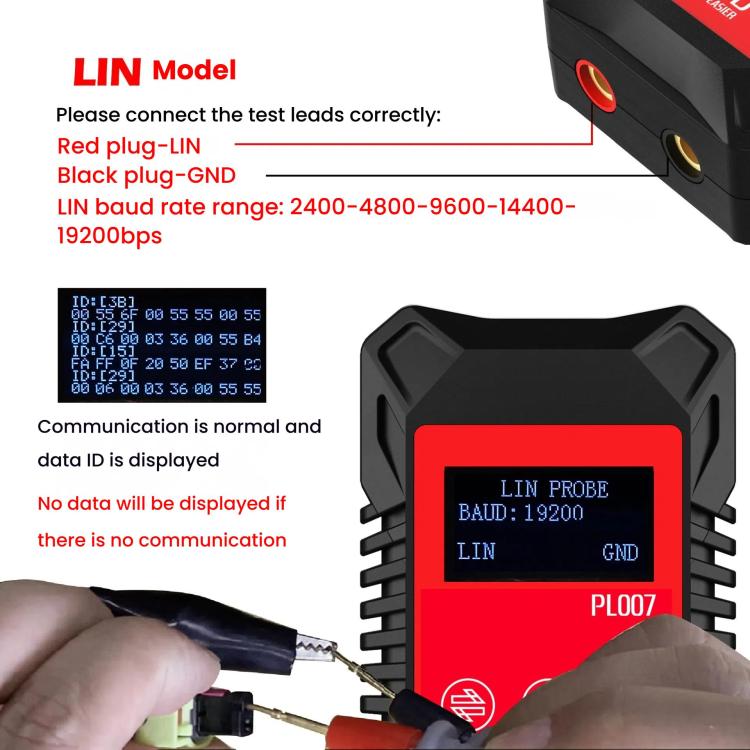

1. Red plug-LIN
2. Black plug-GND

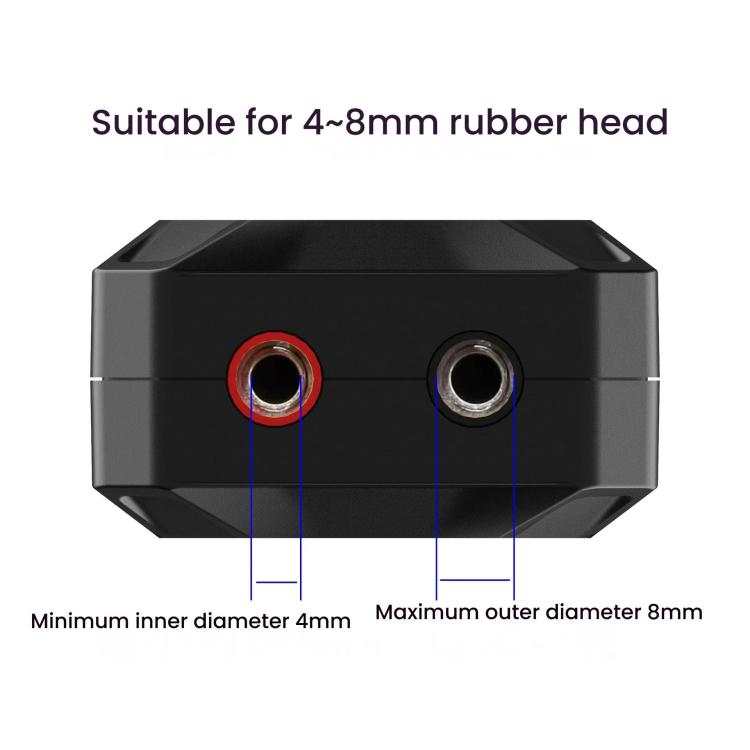

3. Suitable for 4~8mm rubber head
4. LIN baud rate range: 2400-4800-9600-14400-19200bps

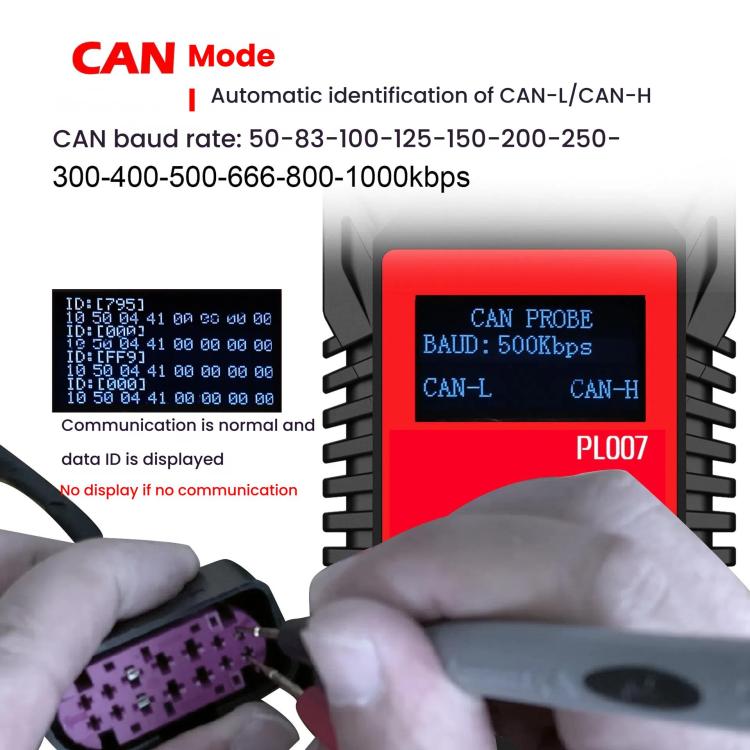

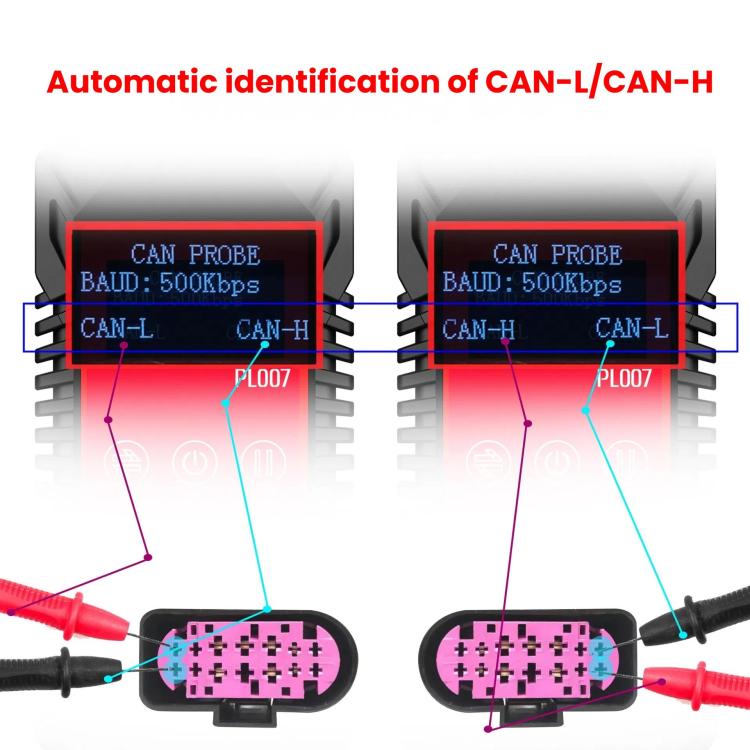

5. Automatic identification of CAN-L/CAN-H
6. CAN baud rate: 50-83-100-125-150-200-250300-400-500-666-800-1000kbps

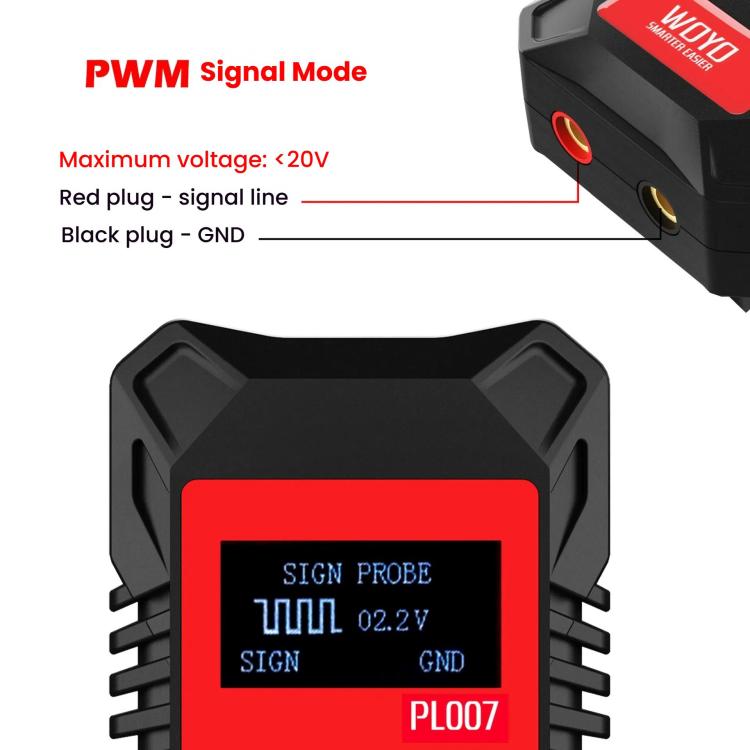

7. PWM signal mode voltage: 20V (MAX)
8. Digital tester designed for automotive electronic products
9. Can detect whether the CAN and LIN communication status is normal, whether there is data online or offline

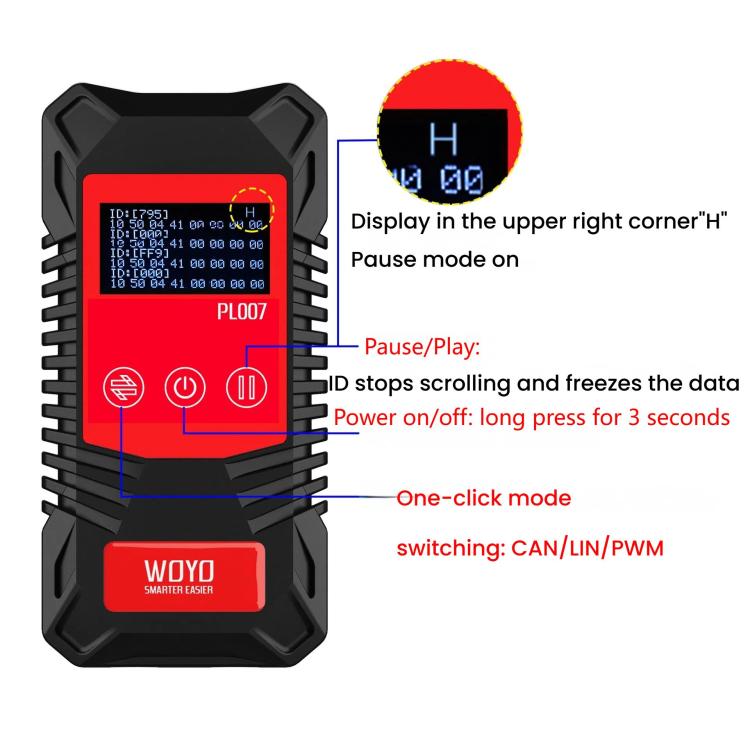

10. Powered by internal 9V (6F22) battery（not included）
11. Display part of the standard frame data, you can stop reading this ID page
12. Size: 11x5 cm

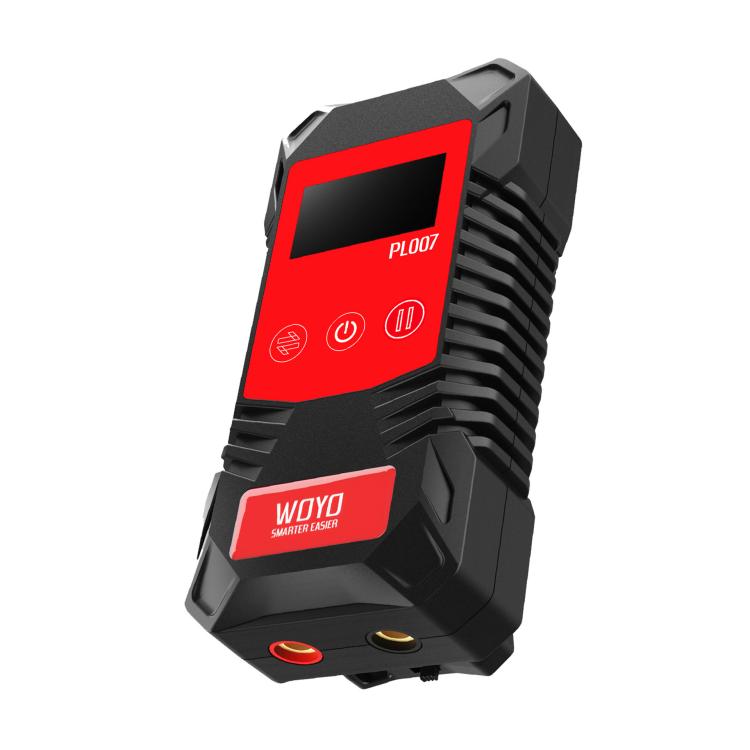

WOYO Handheld CAN/LIN/PWM Digital Communication Circuit Tester
Reliable shipping
Flexible returns
1. Red plug-LIN
2. Black plug-GND
3. Suitable for 4~8mm rubber head
4. LIN baud rate range: 2400-4800-9600-14400-19200bps
5. Automatic identification of CAN-L/CAN-H
6. CAN baud rate: 50-83-100-125-150-200-250300-400-500-666-800-1000kbps
7. PWM signal mode voltage: 20V (MAX)
8. Digital tester designed for automotive electronic products
9. Can detect whether the CAN and LIN communication status is normal, whether there is data online or offline
10. Powered by internal 9V (6F22) battery（not included）
11. Display part of the standard frame data, you can stop reading this ID page
12. Size: 11x5 cm
Specification:
